Bridge Saw Blades

SCG2 - 12".14". 16". 18". 20".

• Dry/Wet Use:  Quartzite, Granite, Engineered Stone
• 20mm (.787") or 15mm (.591") Segment Height
• Production Cutting
• Sandwich Silent Core
• 60-50mm Arbor

ZSG2 - 12".14".16".18".20".

• Dry/Wet Use:  Granite, Engineered Stone , Quartzite (higher feed rate)
• 18mm (.709") Segment Height
• Patterned Diamond Technology
• Production: CNC & Robotic Saws
• Sandwich Silent Core
• 60-50mm Arbor

SCG1 - 12".14".16".18".

• Dry/Wet Use:  Granite, Engineered Stone, Quartzite
• 20mm (.787") or 15mm (.591") Segment Height
• Sandwich Silent Core
• 60-50mm Arbor

SCM1 - 12", 14" Diameters

• Dry/Wet Use:  Quartzite, Granite, Engineered Stone
• 10mm (.394") Segment Height
• Shorter Segments mnimize flexing at weld yielding straight & clean miter cuts & helps prevents segment loss.
• Sandwich Silent Core
• 60-50mm Arbor

SCG3 - 14", 16", 18" Diameters

• Dry/Wet Use:  Granite, Engineered Stone
• 15mm (.591") or 20mm (.787") Segment Height
• Sandwich Silent Core
• 60-50mm Arbor

SCM2 - 12", 14" Diameters

• Dry/Wet Use:  Granite, Engineered Stone
• 10mm (.394") Segment Height
• Sandwich Silent Core
• 60-50mm Arbor

BMB - Stone and Concrete Table Milling Blade

• For calibration of slabs and clean up of table beds.
• 14” x 1.57” (40mm) x 60mm-50mm
• 16” x 1.57” (40mm) x 60mm-50mm
• Wet use

MTE - 5" Diameter

• Dry/Wet Use: Marble, Limestone, Soft Stone, Tile
• 2mm (.078") Segment Height
• .100 Thickness for Straight Cuts
•  Diamond Side Coating-Clean Cuts
• 4 Flush Cut Holes for Quad Adapter
• Dry or Wet Use

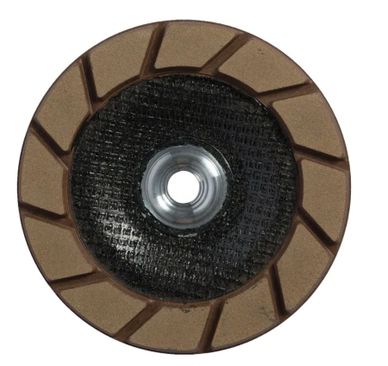

CCW - Edge Finish/Match to Floor

• 5" & 7" Diameter - 5/8"-11 Threads
• 30/50/100/200/400 Grits
• Remove scratches quickly
• No Swirl Marks
• Available in 5 grit sizes to give concrete polished floors the same finish up to the edge of a wall
• 7" Diameter w/Extended Threads
• Wet or Dry use, perform better dry

ZMT- 4.5", 5.3", 6", 7"

• Dry/Wet Use: Granite, Engineered Stone, and Quartzite
• 10mm (.394") Segment Height
• 4 Flush Cut Holes for Quad Adapter
• Quad Adapter available seprately
• Dry/Wet Use

ZTT- 4.5", 5", 6", 7", 9", 10"

• Dry/Wet Use: Granite and Engineered Stone
• Narrow turbo design reduces chipping
• 8mm (.315") Segment Height
• 4 Flush Cut Holes for Quad Adapter
• Quad Adapter available seprately
• Dry/Wet Use

ZQT- 5", 6", 7"

• Dry/Wet Use: Quartzite, Granite and Engineered Stone
• Specifically engineered for the hardest quartzites
• 9mm (.354") Segment Height
• 4 Flush Cut Holes for Quad Adapter
• Quad Adapter available seprately
• Dry/Wet Use

TSP- 4.5" ,5", 6" w/Flush Holes, 7".

• Granite, Engineered Stone, and Hard Materials
• Dry/Wet Use
• 9mm (.354") Segment Height
• Side Protection
• Dry or Wet Use

TBU - 4.5" ,5", 6" w/Flush Holes, 7".

• Granite, Engineered Stone, and Hard Materials
• 8mm (.315") Segment Height
• Flange available, sold separately
• Dry or Wet Use

TGU - 4.5" ,5", 6" w/Flush Holes, 7".

• Granite, Engineered Stone, and Hard Materials
• 8mm (.315") Segment Height
• Flange available, sold separately
• Dry or Wet Use

TGB - 4", 4.5" ,5", 6" w/Flush Holes, 7" (no flush holes)

• Granite and Engineered Stone
• 8mm (.315") Segment Height
• Flange available, sold separately
• Dry or Wet Use

TGP - 4", 4.5" ,5", 6" w/Flush Holes, 7" (no flush holes)

• Granite, Engineered Stone, and Hard Materials
• 8mm (.315") Segment Height
• Flange available, sold separately
• Dry or Wet Use

• MGT - Multi-Grinder for Stone
• 2-in-1 blade cuts and grinds the hardest materials like granite, engineered stone, flagstone, and concrete pavers with ease!
• 4" x .100 x 7/8, 4.5" x .100 x 7/8, 5" x .100 x 7/8, 6" x .100 x 7/8, 7" x .100 x 7/8.
• Flush Cut Adaptor available
• Wet Use

ZCB1 - Stone Core Bit

• 1 1/4", 1 3/8", 1 1/2", 2", 2 1/4",      2 1/2", 3"
• Granite, Engineered Stone, Quartzite
• Patterned - Diamond Segments for consistent cutting & longer life on a variety of materials.
• Brazed Diamonds - In/Out of Barrel
• 8mm (.315") Segment Height
• 5/8"-11 Threads
• Dry or Wet

ZCB2 - Stone Core Bit

• 1 1/4", 1 3/8", 1 1/2", 2", 2 1/4",      2 1/2", 3"
• Porcelain, Granite, Marble, Ceramic, DEKTON®, Engineered Stone,  Quartzite
• Patterned - Diamond Segments for consistent cutting & longer life on a variety of materials.
• Brazed Diamonds - In/Out of Barrel
• 8mm (.315") Segment Height
• 5/8"-11 Threads
• Dry or Wet

ZCB3 - Stone Core Bit

• 1", 1 1/4", 1 3/8", 1 1/2", 1 3/4", 2"
• Granite, Engineered Stone
• 8mm (.315") Segment Height
• Abrasive Coating - In/Out of Barrel
• Laser Welded - Turbo Segments
• 5/8"-11 Threads
• Dry or Wet

ZCB4 - Wet Stone Core Bit

• 3/4", 1", 1 1/8", 1 1/4", 1 3/8",
• 1 1/2", 1 3/4", 2", 2 3/8, 2 5/8, 3", 4", 4 3/4"
•  All Natural Stone, Porcelain, and Engineered Stone
• 9.5mm (.374") Segment Height
• 5/8"-11 Threads
• Wet Use Only

ZCB5 - Wet Stone Core Core Bit

• 1", 1 1/4", 1 3/8", 1 1/2", 2"
• 9.5mm (.374") Segment Height
• 1/2" Gas Threads
• Wet

SCB1 - Wet Stone Core Bit

• 3/4", 1", 1 3/8", 1 1/2", 1 3/4", 2".
• 9.5mm (.374") Segment Height
• 5/8"-11 Threads
• Wet Use Only

SCB2 - Wet/Dry Stone Bit

• 1", 1 1/4", 1 3/8", 1 1/2", 1 3/4", 2"
• 8mm (.315") Segment Height
• 5/8"-11 Threads
• Dry or Wet

SCB3 - Wet/Dry Stone Bit

• 1", 1 1/4", 1 3/8", 1 1/2", 1 3/4", 2", 2 1/4, 2 1/2, 3".
• 8mm (.315") Segment Height
• 5/8"-11 Threads
• Dry or Wet

NCB - Non-Coring Bit for Stone

• 3/16" x 5/8-11
• 1/4" x 5/8-11
• 3/8" x 5/8-11
• 1/2" x 5/8-11
• Dry or Wet

TSW - 4", 5", 6" & 7" Diameter

• Coarse, Medium or Fine Grit
• Wide Turbo Style Segments grind fast and smooth with larger footprint
• 5/8"-11 or 7/8"-5/8" Arbor Hole
• Dry or Wet Use

TFW -  6" x 5/8"-11

• Coarse Grit - 10mm Segments
• Wide Turbo Style Segments grind fast and smooth with larger footprint
• Dry or Wet Use

ZCW -  6" x 5/8"-11

• Resin filled for smoother grinding
• Engineered Stone, All Natural stone, and Concrete
•  Coarse 50/60 Grit
•  Medium 80/100 Grit
•  Fine 120/140 Grit
• Dry or Wet Use

MTS - 5" Diameter

• Dry/Wet Use: Marble, Tile
• Electroplated for Clean Cuts
• 2mm (.078") Segment Height
• .060 Thickness for Precision Cuts
• Angle Slots and Cooling Holes
• Dry or Wet Use

CRB -  Contour Radius Turbo

• All Natural Stone
• Turbo Design w/Core Protection for deeper cuts & radius cuts
• 6.5mm (.255") Segment Height
• Dry/Wet Use: All Natural Stone

CFD - Flush Cut Blade Adapter

• Add 5/8"-11 threads to 7/8" arbor hole for use on a grinder
• Fits 7/8" Arbor Hole
• Dry or Wet Use

RDB - 3.3" Diameter. 7/8"-5/8" Arbor

• Dry/Wet Use:  Granite, Natural Stone, Slabs.
• 10mm (.394") Segment Height
• .250 or .125 Thickness available

PES -  Stone Polishing System

• Designed for radius polishing on machines that require 4” snail lock backed tools.
• Pos. 1 (coarse) 4” x Snail Lock
• Pos. 2 (medium) 4” x Snail Lock
• Pos. 3 (resin) 4” x Velcro®
• Pos. 4 (resin) 4” x Velcro®
• Pos. 5 (resin) 4” x Velcro®
• Pos. 6 (resin) 4” x Velcro®
• 5/8-11 female adaptor to 4” snail lock female adaptor available
• Adaptor Velcro® to 4” snail lock (thicker version to match height of metal bond) available
• Wet Use

EPR - Edge Profile Router Bit

• All Metal Design for Durability
• Vacuum Brazed Technology = Smother Results and Long Life
• 5/8"-11 Threads
• 3/8" Radius Bullnose
• 3/4" Radius Bullnose
• 1" (25 mm) Radius Bullnose
• 1 1/8" (30mm) Radius Bullnose
• Dry or Wet Use

FBV - Profile Router for Stone

• Full Bullnose V Profile Router Bit
• Router/Edge Profile Machine
• Granite, Engineered Stone, Marble and other types of stone.
• Position 1~4 available
• Clean and smooth shaping performance.
• Available in Continuous Smooth, Continuous Slotted, Segmented
• 20, 30, 40, 60 mm Radius'
•  + 80 mm Slotted available
• Wet Use

OFB - Profile Router for Stone

• Ogee Demi Bullnose FB Profile Router Bit
• Router/Edge Profile Machine
• Granite, Engineered Stone, Marble and other types of stone
• Position 1 and 2 available
• Available in Continuous Smooth, Continuous Slotted, Vacuum Brazed
• 20, 25, 30, 40 mm Radius'
• Wet Use

OFP - Profile Router for Stone

• Ogee F Profile Router Bit
• Router/Edge Profile Machine
• Granite, Engineered Stone, Marble and other types of stone
• Position 1 and 2 available
• Continuous Smooth, Continuous Slotted, V-Slot
• Vacuum brazed available for 20mm
• 20, 25, 30, 40 mm Radius'
• Wet Use

DBP - Profile Router for Stone

• Demi B Profile Router Bit
• Router/Edge Profile Machine
• Granite, Engineered Stone, Marble and other types of stone.
• Continuous Smooth, Continuous Slotted, Segmented, V-Slot
• 10, 15, 20 mm Radius'
• Position 1 and 2 available
• Vacuum Brazed available for 10, 15, 20 mm
• Wet Use

CDO - Profile Router for Stone

• Cove Dupont O Profile Router Bit
• Router/Edge Profile Machine
• Granite, Engineered Stone, Marble and other types of stone
• Continuous Smooth, Continuous Slotted, Segmented, V-Slot
• 20, 25, 30 mm Radius'
• Position 1 and 2 available
• Wet Use

COQ - Profile Router for Stone

• Cove Ogee Q Profile Router Bit
• Router/Edge Profile Machine
• Granite, Engineered Stone, Marble and other types of stone
• Continuous Smooth, Continuous Slotted, Segmented, V-Slot
• 20, 25, 30 mm Radius'
• Position 1 and 2 available
• Wet Use

CLR - Profile Router for Stone

• Cove L Profile Router Bit
• Router/Edge Profile Machine
• Granite, Engineered Stone, Marble and other types of stone.
• Continuous Smooth, Segmented
• 20, 25, 30 mm Radius'
• Position 1 and 2 available
• Wet Use

BER - Profile Router for Stone

• Bevel 45 Degree E Profile Router Bit
• Router/Edge Profile Machine
• Granite, Engineered Stone, Marble and other types of stone.
• Continuous Smooth, Segmented
• Position 1 and 2 available
• 15, 25, 30 mm Radius'
• Vacuum Brazed 15,20,30 mm
• Wet Use

ZZT - Zero Tolerance Sink & Edge Grinding Wheel

• Granite and Engineered Stone
• Resin filled for smoother results
• Water feed holes
• 2" x 1 5/8" L x 5/8"-11
• 3" x 1 5/8" L x 5/8"-11
• Wet or Dry use

ZTW - Zero Tolerance Sink & Edge Grinding Wheel

• Resin filled for smoother results
• Water feed holes
• 2" x 1 5/8" L x 5/8"-11
• 3" x 1 5/8" L x 5/8"-11
• 4" x 1 5/8" L x 5/8"-11
• Wet or Dry use

ZFB - CNC Finger Bits for Stone

• Granite and Engineered Stone
• 20mm x 1 5/8"L x 1/2" gas x 4 Seg  (40L-7W-3.5T)
• 22mm x 2"L x 1/2" gas x 4 Seg  (50L-7W-3.5T)
• 20mm x 1 5/8"L x 1/2" gas x 7 Seg  (40L-3W-4.0T)
• 22mm x 2"L x 1/2" gas x 7 Seg  (50L-3W-4.0T)
• Water Feed Holes
• Wet Use

FBS - CNC Finger Bits for Stone

• Natural Stone
• 22mm x 1 5/8"L x 1/2" gas (by special order)
• 22mm x 2"L x 1/2" gas*
• 25mm x 1 5/8"L x 1/2" gas*
• 25mm x 2"L x 1/2" gas*
• Water Feed Holes
• Wet Use

ZPD - 30, 50, 100, 200, 400, 800, 1500, 3000, 5000 Grits.

• 4" Diameter - Dry Ceramic Bond
• Natural Stone, Porcelain, Quartzite, and Glass Tile
• Velcro® Backing for Quick Change
• Dry use

ZCP - 30, 50, 100, 200, 400 Grits.

• 4" x 3mm - Hybrid Bond combines Metal & Resin w/Diamonds
• Natural Stone, Porcelain, Quartzite, and Glass Tile
• Velcro® Backing for Quick Change
• Wet use

• ZTP - 0, 1, 2, 3 STEPS
• 4" x 3mm - Special White Resin will not stain material
• Engineered Stone, Quartzite, and All Natural Stone
• Super high diamond concentration allows 1 pad to do the work of 3
• Optional hyper aggressive position 0 can extend the life of #1 and #2
• Velcro® Backing for Quick Change
• Wet or Dry use

123 - 3 Step Pads

• All Natural Stone
• 4" x 5/8 - Pos. 1
• 4" x 5/8 - Pos. 2
• 4" x 5/8 - Pos. 3
• Velcro® Backing for Quick Change
• Dry Use

DPP - 50, 100, 200, 400, 800, 1500, 3000

• Velcro® Backing for Quick Change
• Dry or wet use

BWP - 4" Resin Pads

• 50/100/200/400/800/1500/3000 Grits
• All Natural Stone, Eng Stone.
• 2.8mm thick resin for long life.
• High Quality and longer life and higher shine than competitors*
• Velcro® Backing for Quick Change
• Wet Use

WPP - 50, 100, 200, 400, 800, 1500, 3000

• 3, 4, & 5" Diameters
• Velcro® Backing for Quick Change
• Wet use

WPS - 4" Diameter

• 50, 100, 200, 400, 800, 1500 & 3000 Grits.
• Spiral Pattern, Fast working
• Velcro® Backing for Quick Change
• Wet use

PES - Stone Polishing System

• Designed for radius polishing on machines that require 4” snail lock backed tools.
• Pos. 1 (coarse) 4” x Snail Lock
• Pos. 2 (medium) 4” x Snail Lock
• Pos. 3 (resin) 4” x Velcro®
• Pos. 4 (resin) 4” x Velcro®
• Pos. 5 (resin) 4” x Velcro®
• Pos. 6 (resin) 4” x Velcro®
• 5/8-11 female adaptor to 4” snail lock female adaptor available
• Adaptor Velcro® to 4” snail lock (thicker version to match height of metal bond) available
• Wet Use

SRB - 3", 4", 5", 7" Diameters

• 5/8"-11 Threads
• Single Layer Rubber
• Extra Flexible
• Velcro® Backing for Quick Change

DRB - 4", 5", 7" Diameters

• 5/8"-11 Threads
• Dual Layer Rubber
• Rigid Center
• Velcro® Backing for Quick Change

RRB - 4", 5", 7" Diameters

• 5/8"-11 Threads
• Dual Layer Rubber
• Rigid Center / Flexible Edge
• Velcro® Backing for Quick Change

EPP - Electroplated Diamond Pads

• 5", 7", 9" Diameters
• 60/100/150/200/400/600 Grits
• 0.7mm Pad Thickness
• Marble, Concrete Counter Tops, Swimming Pool Interiors
• Shaping and Sanding soft materials like Marble and Pool Plaster.
• Velcro® Backing for Quick Change
• Wet use

ZPP - 50, 100, 200, 400, 800, 1500, 3000

• 4" x 2.8mm Thickness
• Remove dull spots, etches, and uneven surfaces quickly
• Better shine (higher gloss reading)
• Shorter polishing times on the most difficult stone surfaces
• Granite and Engineered Stone
• Velcro® Backing for Quick Change
• Wet use

ZHP - 50, 100, 200, 400, 800, 1500, 3000 Grits.

•  Hybrid White Resin - Will not scratch or stain (even when new)
• 4" x 3mm Thickness
• Engineered Stone, Quartzite, and All Natural Stone
• Velcro® Backing for Quick Change
• Wet use

SRB - 3", 4", 5", 7" Diameters

• 5/8"-11 Threads
• Single Layer Rubber
• Extra Flexible
• Velcro® Backing for Quick Change

DRB - 4", 5", 7" Diameters

• 5/8"-11 Threads
• Dual Layer Rubber
• Rigid Center
• Velcro® Backing for Quick Change

RRB - 4", 5", 7" Diameters

• 5/8"-11 Threads
• Dual Layer Rubber
• Rigid Center / Flexible Edge
• Velcro® Backing for Quick Change

Dust Extractor 350LM

•  Width (smaller unit) - 26"
• Height (smaller unit) - 66"
• Weight (net) - 152 lbs
• Cubic Feet Per Minute (CFM) - 330
• Filter Cleaning - Manual
• Power110V / 50Hz - Standard
  220V / 60Hz - Optional
• HEPA - Standard
• Water Lift - 106"

Dust Extractor 150LM

•  Width (smaller unit) - 22"
• Height (smaller unit) - 58"
• Weight (net) - 132 lbs
• Cubic Feet Per Minute (CFM) - 224
• Filter Cleaning - Manual
• Power110V / 50Hz - Standard
  220V / 60Hz - Optional
• HEPA - Standard
• Water Lift - 106"
