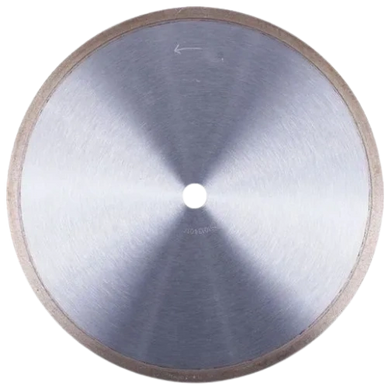

Continuous Rim Blades for Tile, Brick, Stone

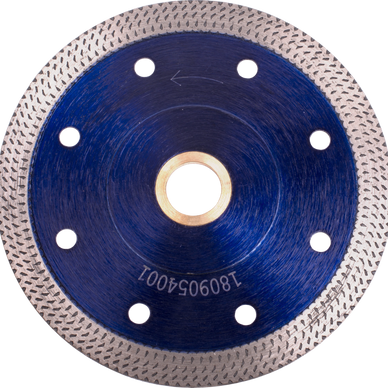

PMT - Porcelain Paver Tile Blade

• 4", 4.5", 5", 6", 7", 9", 10", 14" Diameters
•  7/8"-5/8", 7/8"-20mm Arbors
• 10mm (.394") Segment Height
• .050 -.063 Thickness - Thin Blade for Precision Cuts on Hard Material
•  Reinforced Arbor for Stability
• Dry/Wet Use

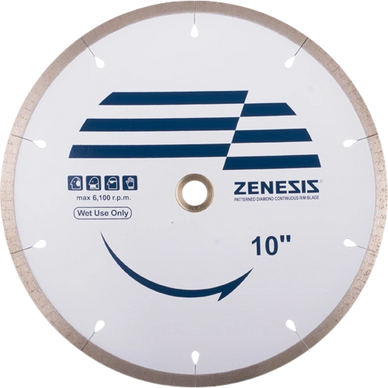

ZPT - Zenesis Porcelain & Stone

• Porcelain Tile, Granite, and Hard Material
• 4", 4.5", 5", 6", 7", 8", 10", 12", 14"
• 4"-6": 6.5mm (.255") Seg Height
• 7"-10": 9.0mm (.354") Seg Height
• 12"-14": 9.5mm (.374") Seg Height
• Water drop slot for 4" to 10"
• 4", 4.5", 5", 6" dry or wet use. All other sizes wet use only

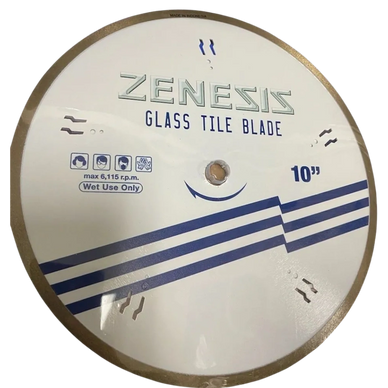

ZPG - Zenesis Glass Tile

• Unique Matrix specifically designed for glass.
• 4" x .063 x 7/8"-20mm-5/8"
• 4.5" x .063 x 7/8"-20mm-5/8"
• 7" x .063 x 5/8"
• 10" x .063 x 5/8"
• Use Dressing Stick regularly for sharpness/maximum performance
• Be sure water flows directly to where the blade contacts glass.
• Wet Use Only

CGT - Glass Tile

• 7.5mm (.295") Segment Height
• 4 x .050 x 7/8-5/8, 7/8-20mm
• 7 x .050 x 5/8
• 8 x .050 x 5/8
• 10 x .050 x 5/8
• 14 x .080 x 1" - 5/8
• 4" dry or wet use. All other sizes wet use only

PTW - Water Drop Slot

• Porcelain Tile, Granite, and Hard Materials
• 4", 4.5", 5", 7", 10"
• 4"-6": 6.5mm (.255") Segment Height. 7/8" Arbor
• 7" x 9.0mm (.354") x DM-5/8"
• 10" x 9.5mm (.374") x 1"-5/8"
• Use 4", 4.5", 5", and 6" dry & wet. All other sizes wet use only

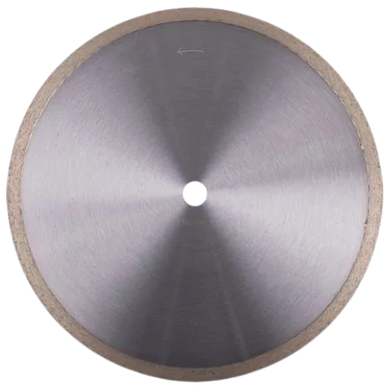

 LST - All purpose Tile Blade

• Porcelain Tile, Ceramic Tile
• 8mm (.315") Segment Height
• 4 x .060 X 7/8-5/8
• 7 x .060 X 5/8
• 8 x .060 X 5/8
• 10 x .060 X 5/8
• 4" dry or wet use. All other sizes wet use only

 GPT - Porcelain Tile Blade

• Porcelain and Ceramic Tile
• 10mm (.394") Segment Height
• 7 x .060 X 5/8
• 8 x .060 X 5/8
• 10 x .060 X 5/8
• 14 x .080 X 1"-5/8"
• Wet Use Only

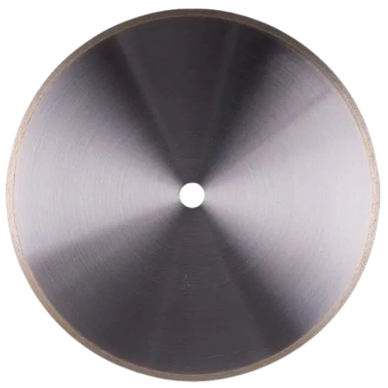

 CRT - All purpose Tile Blade

• Porcelain Tile, Ceramic Tile
• 10mm (.394") Segment Height
• 4 x .060 X 7/8-5/8, 7/8-20mm
• 4.5 x .060 X 7/8-5/8, 7/8-20mm
• 5 x .060 X 7/8-5/8, 7/8-20mm
• 6 x .060 X 5/8
• 7 x .060 X 5/8
• 8 x .060 X 5/8
• 9 x .060 X 5/8
• 10 x .060 X 5/8
• 12 x .080 X 1" - 5/8
• 14 x .080 X 1" - 5/8
• 4", 4.5", 5", 6" dry or wet use. All other sizes wet use only

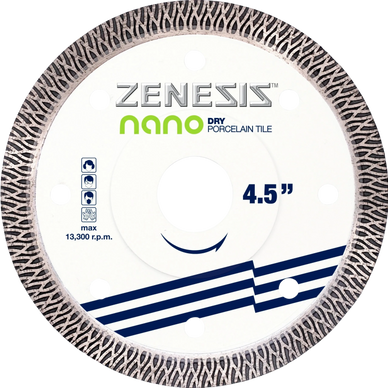

ZPD - Porcelain Tile Dry

• 10mm (.394”) segment height
• Porcelain Tile, Ceramic Tile, Porcelain Pavers, Sintered Stone, Quartzite
• Cuts effortlessly through 2 and 3cm porcelain & hard pavers
• Reinforced core keeps the blade cutting straight on large format tiles
• For straight cutting only
• 9” diameter for electric hand saw
• 4" x .050 x 7/8-5/8" Hub
• 4.5" x .050 x 7/8-5/8" Hub
• 5" x .050 x 7/8-5/8" Hub
• 6" x .050 x 7/8-5/8" Hub
• 7" x .063 x DM7/8-5/8" Hub
• 9" x .098 x 7/8-5/8" - No Hub
• 10" x .063 x 5/8" Hub
• 14" x .110 x 1" - No Hub

RZB - Porcelain & Granite

• 8mm (.315") Segment Height
• Faster Cutting
• 4 x .060 x 7/8-5/8, 7/8-20mm
• 4.5 x .060 x 7/8-5/8, 7/8-20mm
• 5 x .060 x 7/8-5/8, 7/8-20mm
• 7 x .060 x DM7/8-5/8
• 8 x .060 x 5/8
• 10 x .050 x 5/8
• 4", 4.5", 5", 7" dry or wet use. All other sizes wet use only

LAP - Lapidary Blade

• Lapidary, Precious Gems
• 5mm (.196") Segment Height
• 4", 5", 6", 8", 10", 12", 14", 16", 18", 20", 24" Diameters Available
• Thicknesses Ranges .014 to .100
• Other specs available upon request
• Wet Use

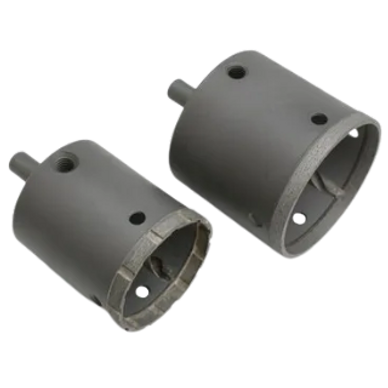

DHS - Diamond Hole Saw

• Porcelain Tile, Ceramic Tile, Granite, Marble
• 5.5mm (.216") Segment Height
• 3/8" Round Shank - Jacobs Chuck
• 1/2 x .080 x 10mm
• 5/8 x .080 x 10mm
• 3/4 x .080 x 10mm
• 7/8 x .080 x 10mm
• 1 x .080 x 10mm w/pilot drill
• 1 1/8 x .080 x 10mm w/pilot drill
• 1 1/4 x .080 x 10mm w/pilot drill.
• 1 3/8 x .080 x 10mm w/pilot drill
• 1 1/2 x .080 x 10mm w/pilot drill
• 1 5/8 x .080 x 10mm w/pilot drill
• 1 3/4 x .080 x 10mm w/pilot drill
• 1 7/8 x .080 x 10mm w/pilot drill
• 2 x .080 x 10mm w/pilot drill
• Dry or wet use

DHG - Diamond Hole Saw

• Porcelain Tile, Ceramic Tile, Granite, Marble
• 5.5mm (.216") Segment Height
• 5/8"-11 Threaded for grinders
• 1/2 x .080 x 10mm
• 5/8 x .080 x 10mm
• 3/4 x .080 x 10mm
• 7/8 x .080 x 10mm
• 1 x .080 x 10mm w/pilot drill
• 1 1/8 x .080 x 10mm w/pilot drill
• 1 1/4 x .080 x 10mm w/pilot drill.
• 1 3/8 x .080 x 10mm w/pilot drill
• 1 1/2 x .080 x 10mm w/pilot drill
• 1 5/8 x .080 x 10mm w/pilot drill
• 1 3/4 x .080 x 10mm w/pilot drill
• 1 7/8 x .080 x 10mm w/pilot drill
• 2 x .080 x 10mm w/pilot drill
• Dry or Wet Use

NCB - Non-Coring Bit for Tile/Stone

• 5/8"-11 Threaded for grinders
• Drill and set inserts for attachments like soap dishes/towel racks
• Replaces need for drill bits that don't work well on tile and stone
• 3/16" x 5/8-11
• 1/4" x 5/8-11
• 3/8" x 5/8-11
• 1/2" x 5/8-11
• Dry or Wet Use

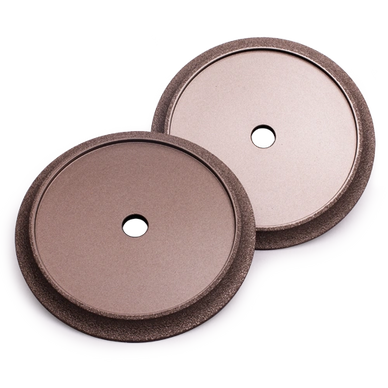

EPW - Edge Profile Wheel

• Marble, Ceramic, Granite, Hard porcelain Tile
• Bevel or bull nose marble ceramic granite, porcelain tile and pavers
• 6 x .375 x 5/8 Demi-Bull Shape B
• 6 x .500 x 5/8 Demi-Bull Shape B
• 8 x .375 x 5/8 Demi-Bull Shape B
• 8 x .500 x 5/8 Demi-Bull Shape B
• 6 x .375 x 5/8 Bevel Shape E
• 6 x .500 x 5/8 Bevel Shape E
• 6 x .500 x 5/8 Ogee Shape F
• Wet Use

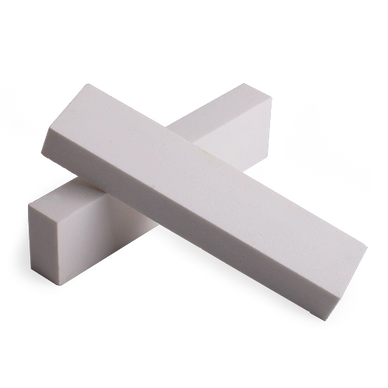

DST - Dressing Stone

• Used for dressing tile and bridge saw blades to prevent chipping
• 8 x 2 x 1, 60 Grit
• Wet or Dry use

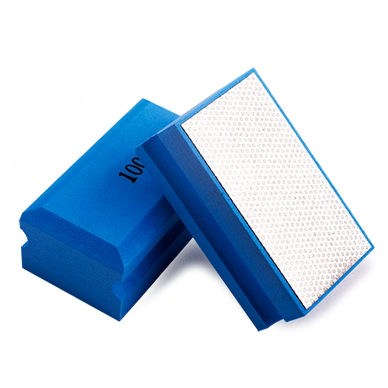

DHP - Diamond Hand Pads

• Repair Natural and Engineered Stone. Edge Polish Ceramic and Porcelain Tile
• 50, 100, 200, 400, 800, 1500 and  3000 grit.
• 50-400 Grit, Electroplated
• 800-3000 Grit, Resin Bond
